Electric High Power
Particle Interconnect connecting two Aluminum plates together

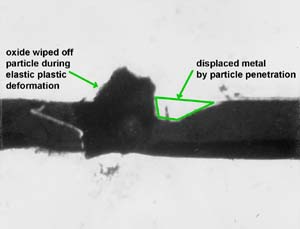

Conductive coated diamond particles connecting two conducting surfaces together.
When tested at 13000 Volts and 1000 Amps on a 0000 wire, Particle Interconnect had 3 millivolt drop.
| AWG | Diameter | |
|---|---|---|
| (inch) | (mm) | |
| 0000 (4/0) | 0.4600 | 11.684 |
| 000 (3/0) | 0.4096 | 10.404 |
| 00 (2/0) | 0.3648 | 9.266 |
| 0 (1/0) | 0.3249 | 8.252 |
| 1 | 0.2893 | 7.348 |
| 2 | 0.2576 | 6.544 |
