Particle Interconnect Package

Particle Interconnect Package (PIP)

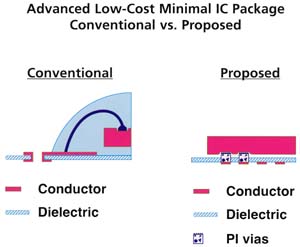

Advanced low-cost minimal IC package.

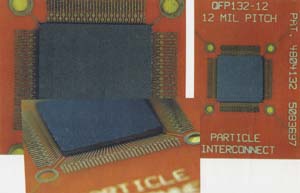

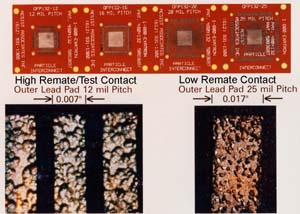

QFP 132 lead, 0.012" pitch OLB (Outer Lead Bond).	Leadframe / Chip-On-Board socket & carrier.

0.001"-0.005" flex/rigid board with flip chip attached topside (heat up/electrical down) {3 μ line & space on 3 μ flex obtainable at special labs} Board acts as probe card/burn-in socket/final package, only bad die are thrown away at assembly. Leads completely supported yet flexible and damage resistant. Outer Lead Bond (OLB) attachment by conventional heated solder reflow method or non-heated Particle Interconnect methods. Automatic or manual placement even with finest pitches. Controlled impedance routing from OLB to die pad in either single or multi-layer PCB. Lower cost than etched/stamped leadframes or conventional flip chip techniques.

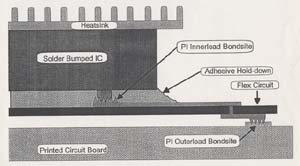

Particle Interconnect lead frame package

Solder bumped chip (ILB) on Particle Interconnect lead frame (OLB).	Particle Interconnect bumped chip (ILB) on Particle Interconnect lead frame (OLB).

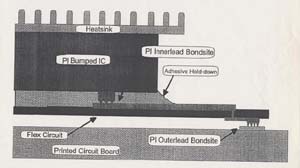

Alternative Particle Interconnect lead frame with holddown

Removable single unit - proof of concept.

0.025" pitch, 196 lead, ceramic QFP.	0.020" pitch, 256 lead, ceramic QFP.

Removable die MCM

Removable die Multichip Module - L/D/C

Socket with heat sink. (a) heat sink, (b) precisor, (c) bumped-die socket. (Dielectric web material not shown.) 0.004" Particle Interconnect bumps (red & blue color) on BeCu (gold color) create Particle Interconnect bridges with 0.004" travel.

Removable die MCM	Louver contact

• Low-cost heat exchanger designed for modular dissipation needs.
• Removable die locator (precisor) aligns all die on 0.010" edge-to-edge mosaic tile pattern of silicon.
• Precisor is accurately aligned by corner guide pins in heat sink.
• Removable die PI interposer sockets die to PCB and spring loads die against heat sink.
• Interposer is accurately aligned by corner guide pins in heat sink.
• Removable die PI interposers with 0.001" - 0.008" travel on 0.001" - 0.030" pitch are available.
• Removable multilayer PCB interconnects all die together with controlled impedance from die pad to die to pad.
• PI vias between laminate layers allow 0.002" "blind" vias by punching through adhesive layer during lamination.
• PCB is accurately aligned by corner guide pins in heat sink.
• Removable package PI interposer sockets package to PCB and spring loads package to PCB.
• MCM is accurately aligned and held to PCB by corner guide pins for manual or automatic insertion.
• Package interposers with 0.08"-0.020" travel on 0.010"-0.050" pitch with either peripheral or array patterns available.
• Die are removable by simply unstacking layers.
• Both bumped and wire bond die pads are mixable.

Successful projects

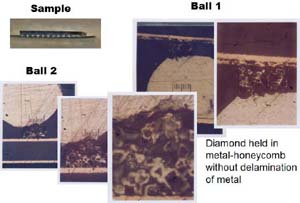

Particle Interconnect piercing SDRAM DDR1 package balls

• Demonstrating damage free performance when exposed to excessive loading.
• 60 pounds of force on 60 balls.
• Note minor depth of penetration.

Particle Interconnect - Sandia Lab Known Good Die (KGD)

Known-Good-Die probe/burn-in. Proof of removable die MCM-L/D/C.

• 0.030" pitch 19x19 miniBGA.
• Burn-in at 125 ° C, 168 hours.
• 0 failures, 100+ runs, no deformation.

0 failures, 11 runs shown above.	Particle Interconnect surface mount BGA socket.

Particle Interconnect - Sandia mBGA interposer schematic.	Sandia mBGA interposer

Particle Interconnect - MMS - TI - HP bare die probe

Proof of removable Known-Good-Die. Note single layer of particle on pad.

IEEE Transactions on Components, Packaging, And Manufacturing Technology

A Bare-Chip Probe for High I/O, High Speed Testing

Alan Barber, Keunmyung Lee, and Hannsjorg Obermaier

HPL-94-18

Particle Interconnect - Hughes Aircraft 1988 joint venture in Known-Good-Die

Resulting in a supercomputer assembled with Known-Good-Die in 2" x 4" x .1".

Science/Scope 1989 Hughes Aircraft Company:

"A new technique for packaging large-scale integrated circuit (IC) chips will permit much denser packaging on the substrate than previously possible. High-density multichip interconnect (HDMI) technology, being developed by Hughes, is designed to meet the needs of the next generation of VHSIC II hybrid circuits, which require dense packaging with no signal degradation at frequencies over 100 MHz. HDMI packaging achieves these results using a multi-layer substrate, a polymer dielectric highly suited to fine line metallization processing, and lithography techniques capable of producing 10-micron line widths. The technology is expected to be used in radar, sensing, tracking and guidance programs."

"The Data Memory Structure (DMS) multichip module is a very high speed cache memory system, switchable at high speed, to either of 3 input or output ports."

"HDMI can accommodate six 129K gate arrays (.640x.640 mil/die, 550+ pads/die; total 750,000 gates and 3,300 pads), 52 capacitors, and 24 - 15 nsec SRAM (32+ pads/die; total 750+), interconnected (using 70+ mil wire bond alleys) on a 2" x 4" = 8 in² substrate having 368 I/O's."

"Performance of high speed circuits is also enhanced with low K polyimide dielectric used in the HDMI multilayer thin film (solder sealed ceramic leaded package) structure."

(All components tested/burned-in/speed sorted using PI resulting in 15+% yield improvement over production parts. Die price set at $5,000@ x 6 = $30,000, therefore DMS price >$100,000@)

PI's proposed removable die MCM-L/D/C to Hughes Aircraft.

Proposed to purchased a wafer for a total of $1,000 which was comprised of 300 die (5K gates/die .275 x .275 in.²/die, 180 pads/die for a total of 1,500,000 gates and 54,000 pads) interconnected on a 4" x 6" = 24 in.² substrate. 50 mil pitch array yielded up to 9,600 I/O's.

Cost is further reduced by common low K polyimide multilayer PCB using 6+ mil pitch traces.

Environmental sealing of each die would also produce better reliability and upgradeability.
