Removable die Multichip Module

1. Removable die MCM - L/D/C
2. Successful projects
• Hughes Aircraft
• Sandia Lab

Removable die MCM - L/D/C

• 4X-20X improvements in size and weight.
• 25% reduction in power and over 10X reduction in propagation delay times (i.e. increase speed).
• Integration into a MCM would reduce cabling.
• This modular configuration reduce building and testing time since modules are connected using PCB traces with Particle Interconnect interposer.
• Less expensive (< 2) than conventional packaging at the component level with significant cost reduction at the system level due to reduced mass of electronics and electric power supply.

Removable die Multichip Module - L/D/C

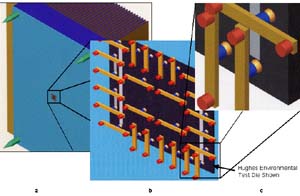

Socket with heat sink. (a) heat sink, (b) precisor, (c) bumped-die socket. (Dielectric web material not shown.) 0.004" Particle Interconnect bumps (red & blue color) on BeCu (gold color) create Particle Interconnect bridges with 0.004" travel.

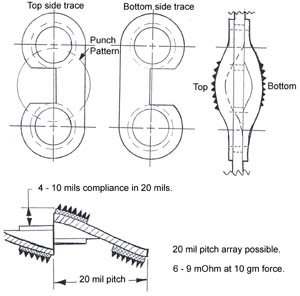

Removable die MCM	Louver contact

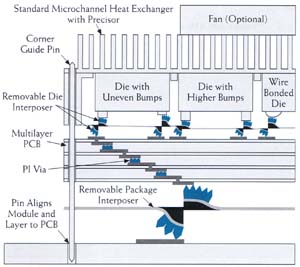

• Low-cost heat exchanger designed for modular dissipation needs.
• Removable die locator (precisor) aligns all die on 0.010" edge-to-edge mosaic tile pattern of silicon.
• Precisor is accurately aligned by corner guide pins in heat sink.
• Removable die PI interposer sockets die to PCB and spring loads die against heat sink.
• Interposer is accurately aligned by corner guide pins in heat sink.
• Removable die PI interposers with 0.001" - 0.008" travel on 0.001" - 0.030" pitch are available.
• Removable multilayer PCB interconnects all die together with controlled impedance from die pad to die to pad.
• PI vias between laminate layers allow 0.002" "blind" vias by punching through adhesive layer during lamination.
• PCB is accurately aligned by corner guide pins in heat sink.
• Removable package PI interposer sockets package to PCB and spring loads package to PCB.
• MCM is accurately aligned and held to PCB by corner guide pins for manual or automatic insertion.
• Package interposers with 0.08"-0.020" travel on 0.010"-0.050" pitch with either peripheral or array patterns available.
• Die are removable by simply unstacking layers.
• Both bumped and wire bond die pads are mixable.

Successful projects

Particle Interconnect - Hughes Aircraft 1988 joint venture in Known-Good-Die

Resulting in a supercomputer assembled with Known-Good-Die in 2" x 4" x .1".

Science/Scope 1989 Hughes Aircraft Company:

"A new technique for packaging large-scale integrated circuit (IC) chips will permit much denser packaging on the substrate than previously possible. High-density multichip interconnect (HDMI) technology, being developed by Hughes, is designed to meet the needs of the next generation of VHSIC II hybrid circuits, which require dense packaging with no signal degradation at frequencies over 100 MHz. HDMI packaging achieves these results using a multi-layer substrate, a polymer dielectric highly suited to fine line metallization processing, and lithography techniques capable of producing 10-micron line widths. The technology is expected to be used in radar, sensing, tracking and guidance programs."

"The Data Memory Structure (DMS) multichip module is a very high speed cache memory system, switchable at high speed, to either of 3 input or output ports."

"HDMI can accommodate six 129K gate arrays (.640x.640 mil/die, 550+ pads/die; total 750,000 gates and 3,300 pads), 52 capacitors, and 24 - 15 nsec SRAM (32+ pads/die; total 750+), interconnected (using 70+ mil wire bond alleys) on a 2" x 4" = 8 in² substrate having 368 I/O's."

"Performance of high speed circuits is also enhanced with low K polyimide dielectric used in the HDMI multilayer thin film (solder sealed ceramic leaded package) structure."

(All components tested/burned-in/speed sorted using PI resulting in 15+% yield improvement over production parts. Die price set at $5,000@ x 6 = $30,000, therefore DMS price >$100,000@)

PI's proposed removable die MCM-L/D/C to Hughes Aircraft.

Proposed to purchased a wafer for a total of $1,000 which was comprised of 300 die (5K gates/die .275 x .275 in.²/die, 180 pads/die for a total of 1,500,000 gates and 54,000 pads) interconnected on a 4" x 6" = 24 in.² substrate. 50 mil pitch array yielded up to 9,600 I/O's.

Cost is further reduced by common low K polyimide multilayer PCB using 6+ mil pitch traces.

Environmental sealing of each die would also produce better reliability and upgradeability.

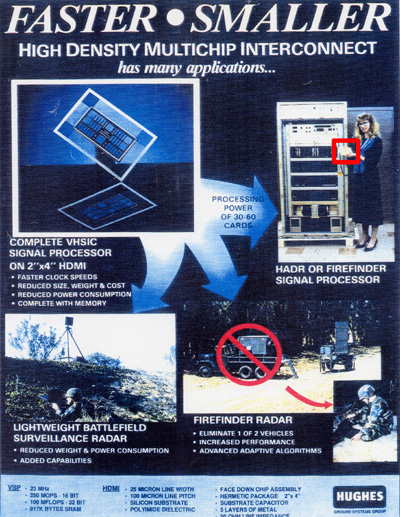

Particle Interconnect - Hughes 1989 Fire Finder MCM

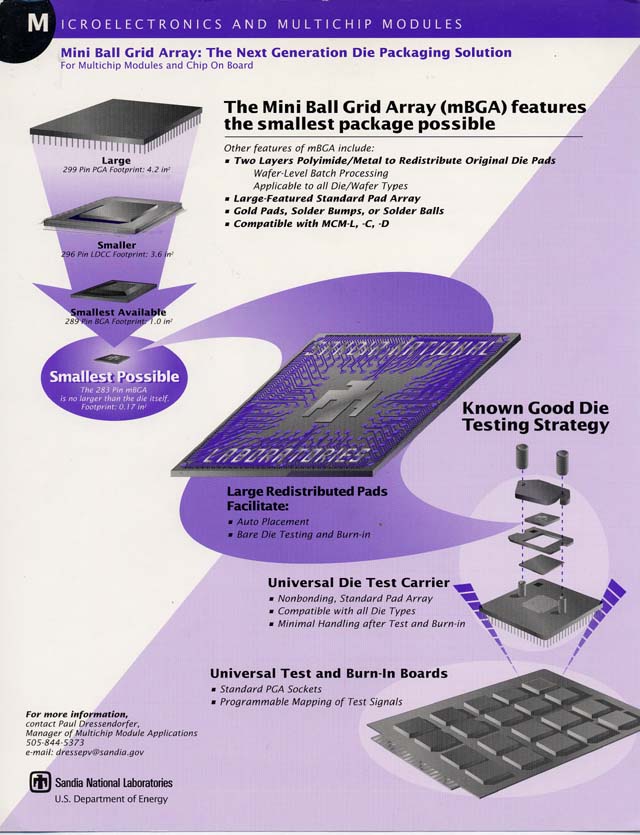

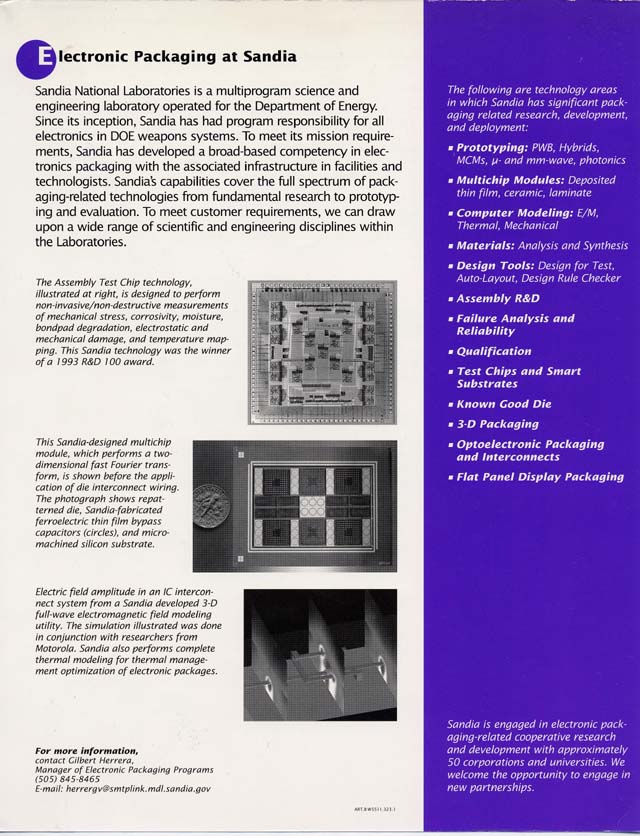

Particle Interconnect - Sandia Lab mBGA KGD packaging solution

For multichip modules and chip on board.
